Hydraulic Tilting 1000KG Small Gas Fired Aluminium Melting Furnace For HPD
1000KG Capacity Gas Fired Source Hydraulic Tilting Crucible Furnace
1. Small Gas Fired Aluminium Melting Furnace Description
-- Small Gas Fired Aluminium Melting Furnace Use area in all foundries or pre
– smeltery for feeding holding furnaces or for direct casting.
-- Small Gas Fired Aluminium Melting Furnace Can also be used as tilting holding/melting furnace.
-- Versatile use by good regulation of the tilting speed and Tempperature control.
-- Advantages of the electric furnace
-- Silent operation
-- Low heat losses through high-quality insulation
-- No exhaust system needed
-- Accurate temperature control Crucible
-- Standard design for the use of graphite crucible
2. Small Gas Fired Aluminium Melting Furnace Parameter Data
| SN | Items | Data | Remarks |
| 1 | Efficient furnace capacity kg (Al) | 930 | |
| 2 | Melting Rate kg/h (Al) | 450 | Inside the crucible there is already have 1/3 molten aluminum. |
| 3 | Burner | TGB60P | |
| 4 | Energy Consumption m3/h | Around 40 | |
| 5 | Maximum furnace temperature ℃ | 950 | |
| 6 | Precision of molten aluminum temperature control ℃ | ≤± 5 | |
| 7 | Temperature control mode | PID+Dual temperature control | |
| 8 | Crucible type and size mm | ODΦ880, Height 1170 | TBN1100 Morgen |
| 9 | Furnace surface temperature rise ℃ | ≤50 | Except for the installation site of the heating tube, the discharge outlet and rising tube |
| 10 | Gas Source | Gas type | Natural Gas | |
| Gas pressure | 5 Kpa | |
| Max. Flow | 75 m3/h | |
| 11 | Power Source | Voltage V | 380 | |
| Frequency HZ | 50 | |
| Power Kw | ≤5 | |
| 12 | Air Pressure MPa | 0.5-0.7 | |
3. Small Gas Fired Aluminium Melting Furnace Models
| Type | GRL-300 | GRL-500 | GRL-600 | GRL-800 | GRL-1000 | GRL-1200 |
| Capacity | 191KG | 338KG | 515KG | 763KG | 952KG | 1062KG
|
4. Hydeb Company Profile
-- Hdyeb company was established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2021
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment

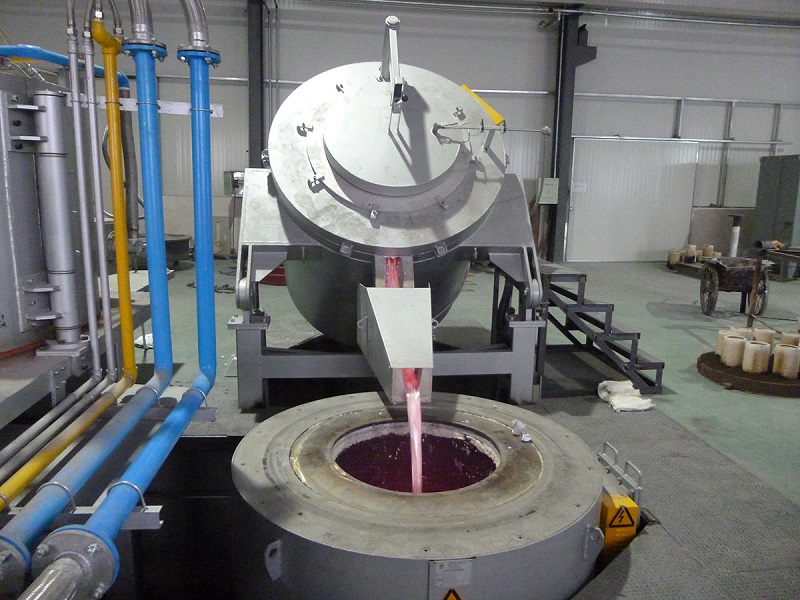

5. Small Gas Fired Aluminium Melting Furnace Reference Pictures
6. FRQ
Q1: I know nothing about this furnace, what kind of furnace I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this furnace, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this furnace during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
7. CE & ISO
